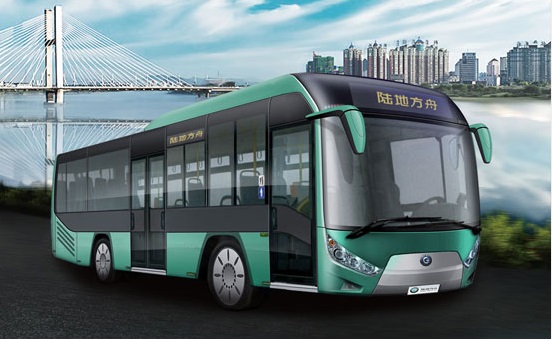

Model | GreenWheel 12m Electric Bus |
Dimensions | |
Length*Width*Height (mm) | 12000x2550x3200 |
Wheel base (mm) | 6100 |
Maximum gross weight (kg) | 18000 |
Approach/ Departure Angle (°) | 7/8 |
One step height (mm) | 360 |
Seats | 34+1 |
Powertrain System | |
Driving system | Rear-wheel drive |
Layout | Rear motor |
Batteries | Lithium-Ion Battery |
Chassis | |
Steering system | Electro-hydraulic power steering |
Axle | Front & rear portal axle with disc brake |
Suspension System | 2+4 Air suspension( ECAS system), Front & rear stabilizer-bar, telescopic shock absorber |
Braking system | ABS Dual-circuit air brake system & energy storage spring parking brake |
Body parameter | |
Structure | All monocoque body |
Door | Front and rear inner pneumatic swing door |
Window | Adhesive ; push-pull |
Sunroof | Top safety window with electric ventilating device |
Seat type | Dedicated bus seat |
Inner Illumination | Long car lamp, ceiling lamp |
Audiovisual system | LED screen |
Monitoring system | Reverse camera, monitors in two doors and driving area |
A/C | A/C (heater and cooling) |
Other | E-station reporter, Three LED sign display |
